Airgas CO2 Rental Equipment

Project Description

Airgas contacted ColonialWebb because they needed a quick and cost-effective solution for a previously unmanned facility that needed to be made capable of handling new business. The site had previously stored CO2 and had long been disconnected from refrigeration; Airgas had another CO2 storage facility shut down and needed to quickly re-route all of this facility’s existing business to a different plant. Working with our partners, we designed, procured, and installed a 200-ton low temp chiller which successfully provided a low temp refrigeration solution for Airgas’ CO2 storage needs in the short time frame they required. ColonialWebb and Airgas continue to work together on a multitude of other projects and job sites, and they have come to rely on Colonialwebb as a trusted advisor and provider of quick and reliable refrigeration needs.

Previous
Next
Project Size
Contract Amount
Customer
Architect
Engineer
Owner
Project Highlights
• Installation of temporary equipment including: 200 ton Low Temp Chiller providing -15F glycol, (1) 500 SF shell & tube HXC, and (1) pump in order to pull down & maintain incoming CO2 product below 300 PSI.
• Erected scaffolding to support HXC as well as provide access.
• Included procurement and installation of stainless steel piping and butterfly valves.

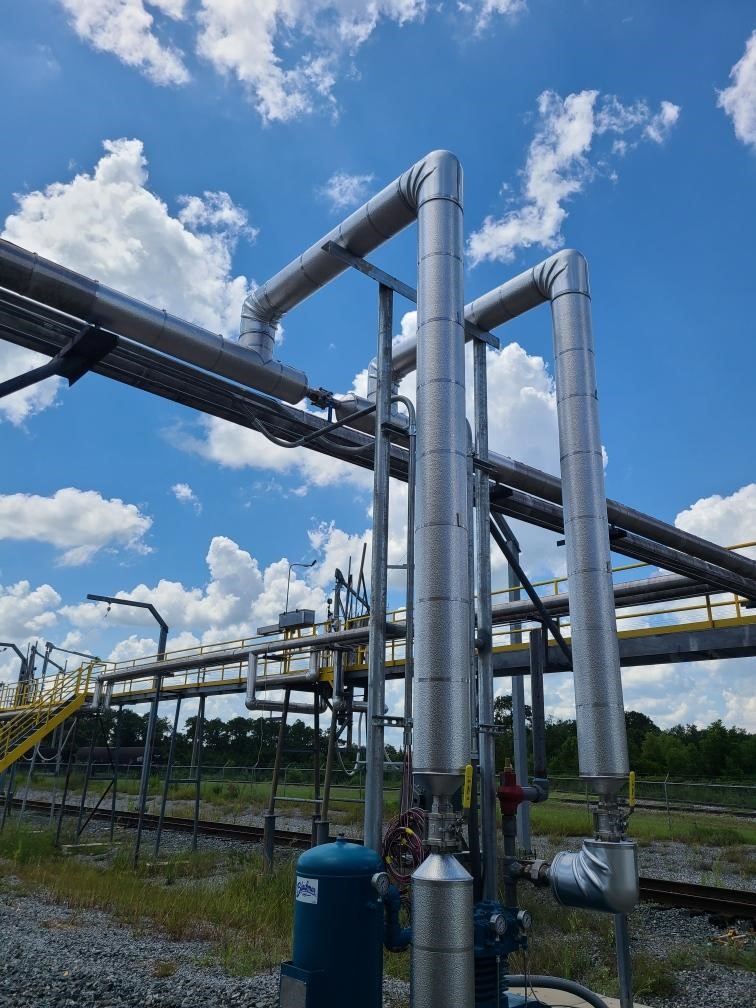

• Provided polystyrene insulation with metal jacketing for incoming and outgoing CO2 lines, as well as HXC.
• Set & tie in compressor, provided by customer.
